TDCS Controller Step 5 – Making Electrodes

I’ve finished the updated design for my TDCS controller, but I’m waiting for a few parts that I didn’t have on-hand and couldn’t strip off of the board that represented my first attempt. Rather than just sit around and wait, I decided to figure out how to make a decent set of electrodes without ordering stuff online.

I used a standard 3.2mm mono-jack to connect the leads, and had intended to build my own cables. However, I don’t have any wire around the house that is suitable for this use. All of it is either way to heavy a gauge, or it’s solid core and stiff. I can either wait for the parts to arrive, or I can improvise. If you know much about me, you know I’m fond of improvising so long as it isn’t unsound. I had a cable from a pair of headphones laying around, and the only difference between a mono jack and stereo headphones is an extra conductor that I can completely ignore.

Headphone wire is well enough for the cable, but breaking out pigtails requires slightly more robust stuff. Again, I didn’t have any wire laying around that was suitable, but I did have an old DC motor I scavenged years ago, and the power leads to it were just right. I clipped those off, soldered and heat-shrinked (is that a word?) them, and soldered on some alligator clips. To make the actual electrodes, I cut two pieces of 14ga solid copper wire (taken from some extra ROMEX wire I had laying around) and coiled it into about a one inch disc.

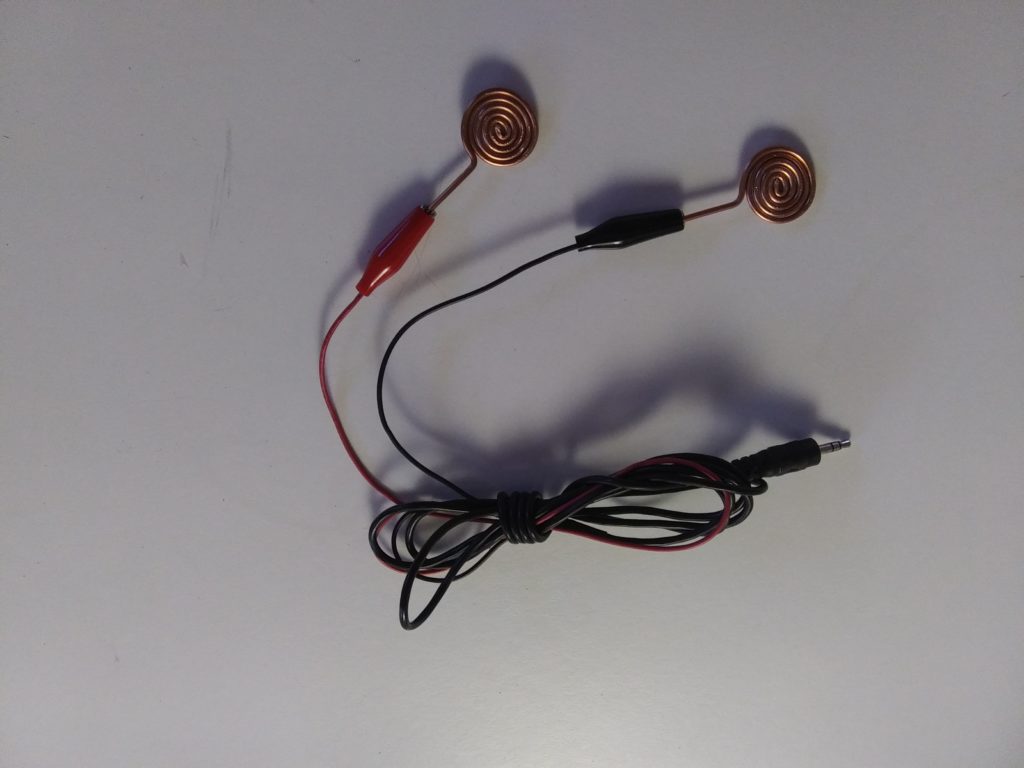

Stage one of my electrodes for TDCS. The copper coils are 14ga copper from wiring leftover after building a barn out back several years ago.

From what I’ve read, the electrodes can burn you if the current isn’t distributed over a large enough area. Standard practice is to use saline soaked sponges, so I went to the local WalMart to see what was available. All of the sponges I could find in the cleaning isles contained an antimicrobial substance (you can tell because it warns you against use in aquariums). I don’t like the idea of that kind of stuff migrating from the sponge into my head, even though that’s a mostly irrational concern. I kept looking for a sponge that didn’t have that stuff in it. The make-up isle had the answer.

Make-up sponges don’t have antimicrobial stuff on them except for some vitamin E. They are also about the right size. I bought a bag for a dollar and headed home. Using a utility knife, I sliced a pocket inside two of them and inserted the wire coils. After soaking them in salt water, I stacked the two on top of each other and connected them to my first controller design (it generates the right current, it just doesn’t show you it’s working and the safety features won’t work right). The controller reliably produced the correct current through the pads.

To make it easier to distinguish anode from cathode, and to keep the whole thing together, I made small pouches out of red and dark blue material to stick the sponge and electrodes in. While I was rummaging through my wife’s sowing kit, I also grabbed some elastic and velcro to make some bands to hold the pouches in place. Here’s the end result

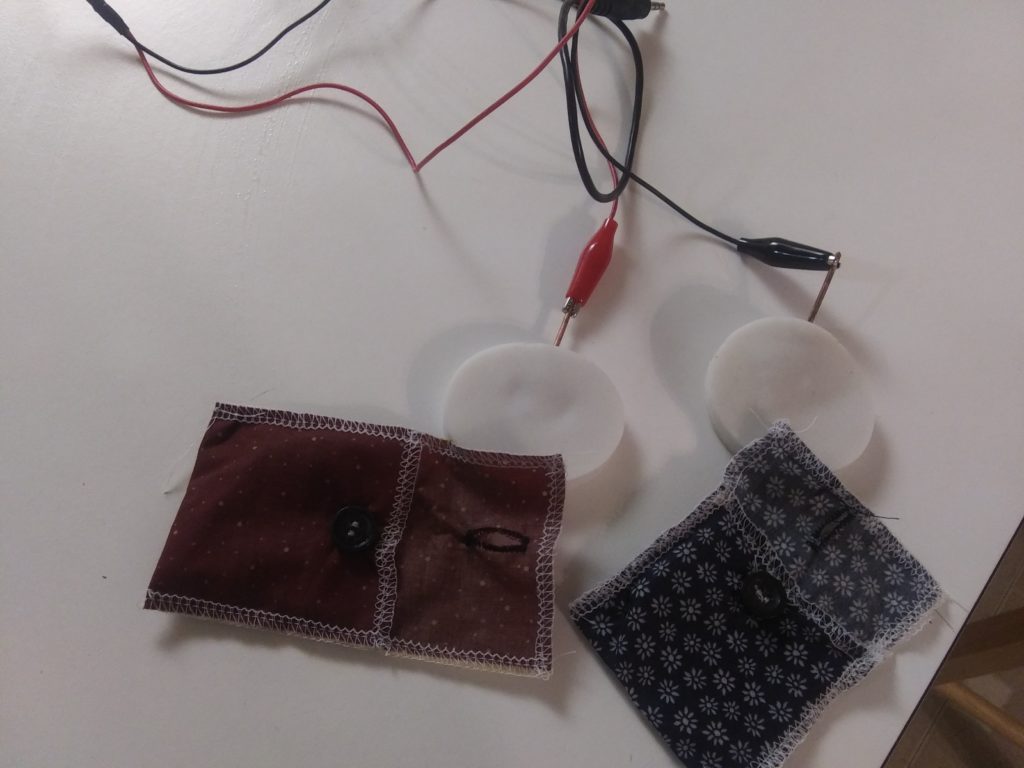

The electrode sponges fit inside the pouches. Red for Anode, black/dark blue for cathode. I was somewhat limited by the range of fabrics in Liz’s scrap pile. Dampened with saline, the sponge/pouch combination lets plenty of current flow.

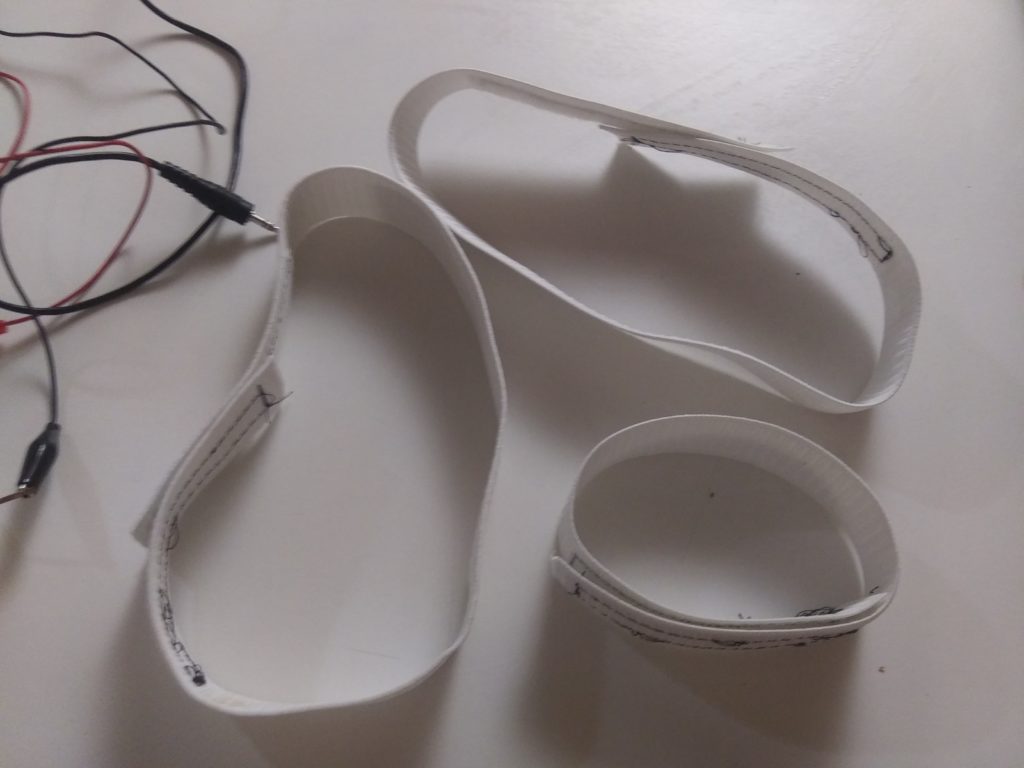

I sewed velcro onto a few bands of elastic (no comments on my sewing skills… I’m an engineer, not a seamstress). Two for the head, one for the arm.

Now… I just need those parts to arrive and I can test it. If all goes well, the last step will be to design or buy an enclosure. I haven’t decided yet if I’ll have a friend 3-D print one, or just buy one from the electronics hobby type stores.
